Low-Level Wind Shear Alert System (LLWAS)
The LLWAS system was originally developed by the FAA in the 1970s to detect large scale wind shifts (sea breeze fronts, gust fronts and cold and warm fronts). It was developed by the FAA in response to an accident at JFK airport in New York. The aircraft (Eastern 66) landed during a wind shift caused by interacting sea breeze and thunderstorm outflows.
This Phase–1 LLWAS was very simple. It compared a center field wind to 5 other sensors around the airport. When there was a 15–knot vector difference, it would flash the wind data to the air traffic controller and the controller would read the raw winds, e.g., 120/35 (120 degrees at 35 knots), 110/20, 350/15, etc. from each sensor to the pilot landing or about to take off and the pilot had to do the vector addition in his head to determine the headwind/tailwind components.
This simple system worked for large scale weather features, but it also had a serious false alarm problem and the sensors were too far apart to capture small, but intense windshear events important to aircraft. Also, the center field wind could be variable and this would trigger windshear alarms at all the outer sensors since all the other sensor winds were compared to center field. Research conducted at the National Center for Atmospheric Research (NCAR) in the 1980s indicated that microburst windshear was very dangerous to aircraft below 1000 ft. Several major accidents during the 1980s also implicated windshear as a factor.
LLWAS History
In 1983, the FAA asked NCAR to develop a version of LLWAS that could detect microbursts. Between 1983 and 1988, NCAR developed and tested a new LLWAS system, called enhanced LLWAS or LLWAS–Network Expansion that detected microbursts, determined the strength in terms of headwind/tailwind gains or losses (in knots) and located the event (on the runway, at 1, 2, or 3 nm on departure or arrival). The system was designed to provide alerts specific to each runway operation. It was designed to have a probability of detection of 90 percent or greater and a false alarm rate of 10 percent or less.
This system was later improved and is now called the Phase–3 LLWAS. A typical Phase–3 LLWAS will have enough sensors to be spaced 2–km apart (∼1 nm apart) and cover out to 2 nm from the end of each major runway. The largest LLWAS is at Denver International Airport. It has 32 wind sensors. Most Phase–3 systems have between 12 and 16 wind sensors. A siting evaluation is done for each airport to determine the network geometry since it depends on terrain, # of runways, obstructions, etc.
The Phase–3 LLWAS alert information is described here. If a pilot is landing on runway 08, and there is a microburst on his path, the controller would have a display that reads: 08A MBA 30K–3MF 350/25. This is read to a pilot arriving on runway 08 (08A) by a final controller as "microburst alert (MBA), expect a thirty knot loss (30K–) at three miles final (3MF), threshold wind three–five–zero at 25 (knots)".
If there was a wind shear with a wind speed gain at 1 mile departure (headwind gain), for a pilot departing runway 25 left, the final controller's LLWAS display would show: 25LD WSA 15k+ 1MD. This would be read as "winds hear alert, expect a fifteen knot gain at one mile departure". There are Phase–3 LLWAS systems at 9 US airports and Phase 2 LLWAS at more than 100 airports. Taiwan, Korea, Singapore, Saudi Arabia, and Kuwait are now implementing LLWAS Phase–3 systems. Note, the FAA also has Terminal Doppler Weather Radars for wind shear detection at 45 airports and has ASR–9 based wind shear detection systems at another 37 airports. The FAA originally had 110 Phase–1 LLWAS systems, which were upgraded to Phase–2 systems.
A Phase–2 LLWAS has the same number of sensors (5–6) as a Phase–1 system (described above), but the wind shear algorithm was upgraded to significantly decrease the number of false alarms. As mentioned above, a Phase–1 or Phase–2 LLWAS was not designed to detect microbursts per se, but if the flow is large and strong, it may alert.
When NCAR developed the Phase–3 LLWAS, it gave the specifications to the FAA. The University Corporation for Atmospheric Research Foundation (UCARF), owned the intellectual property for the wind shear algorithm during the lifetime of the patent. A license agreement was required for companies to implement LLWAS technology until early 2013 when the patent exclusion expired. A license from UCARF is no longer required to utilize the LLWAS algorithm. The UCARF does however, provide technical materials such as test datasets, test airport configuration files, test alert outputs, etc. to aid companies in the implementation and testing of the LLWAS Phase-3 algorithm.
Consulting
Wind shear experts in RAL provide consultancy services to public and private organizations and governments around the world to help them understand wind shear and various wind shear detection system solutions. The consultancy services include identifying the exposure to wind shear, providing technical information on wind shear detection system solutions, siting systems, training aviation personnel on the impacts of wind shear on aviation, preparing technical specifications for wind shear systems, supporting the tendering process, and assisting with the implementation of wind shear detection solutions. For more information go to our page on wind shear system consultancy services.
Frequently Asked Questions
Q. What is LLWAS?
A. A typical Phase–3 LLWAS system includes a network of anemometers (wind sensors) atop tall poles located around the airport (a.k.a. remote stations) out to no more than 3 nm from the end of the runways, a master station that processes system data and communicates with the remote stations, an archiving system, operator console, alphanumeric alarm displays, and in some instances graphical displays.
Q. How does it work?
A. The wind data at each remote station is processed every 10 seconds to determine if there is divergence or convergence within the network, or station–to–station wind differences between stations aligned with the runways. The divergence/convergence information is processed and if the intensity of the event is large enough, the system will calculate the strength of the along–runway wind losses or gains and generate windshear or microburst alerts (depending on strength), and identify the location of the event.
Q. What is a microburst?

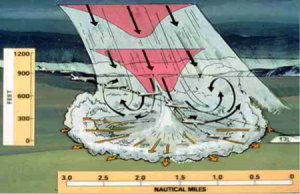

A. A microburst is an intense windshear. By definition: Microburst n: A small, very intense downdraft that descends to the ground resulting in a strong wind divergence. The size of the event is typically less than 4 kilometers across. Microbursts are capable of producing winds of more than 100 mph causing significant damage. The life span of a microburst is around 5–15 minutes.
Q. What causes microbursts?
A. Microbursts are strong windshears (greater than 30–knot winds speed losses over distances of 1–4 km) that are primarily generated by evaporative cooling and rain loading. When precipitation (rain or snow) descends below cloud base or is mixed with dry air, it begins to evaporate and this evaporation process cools the air. The cool air descends and accelerates as it approaches the ground. When the cool air approaches the ground, it spreads out in all directions and this divergence of the wind is the signature of the microburst. In humid climates, microbursts can also generate from heavy precipitation. The weight and drag associated with the falling precipitation can result in a downdraft that will descend to the ground and spread out.
Q. Why is it a problem for airplanes?
A. Windshear is a rapid change of wind speed or direction over a short distance. In general, windshear becomes a hazard for aircraft if the wind changes more than 20 knots over a distance of 1–4 km (0.5 to 2.5 nm). On either takeoff or landing, aircraft are near stall speeds. When going through a windshear, the headwind decreases resulting in a loss of lift. If the aircraft is near stall, then a little loss of lift can make all the difference to whether the aircraft can continue the flight.
Q. How and what kind of decisions do airports or airlines make using LLWAS?
A. LLWAS provides information on windshear type, location, and intensity. Windshear alerts are issued via radio to arriving and departing aircraft by final air traffic controllers. In the U.S., most airlines require that pilots not continue their arrival or departure if there is a microburst alert valid for their operation. Although most aviation authorities do not close the runways when microbursts are occurring, the air traffic controllers will work with the pilots to reroute aircraft away from the event to a runway that is not impacted by the windshear.
Q. How and what kind of decisions do airports make using LLWAS?
A. LLWAS provides information on windshear type, location, and intensity. The pilots get the alert from the controller and the pilot is supposed to determine if they feel comfortable continuing the operation. In the U.S., airlines require that pilots do not continue if there is a microburst alert.
Q. Where have LLWAS systems been implemented?
A. Phase–3 LLWAS systems have been implemented throughout the U.S.A. and at numerous international airports including, but not limited to Taiwan, Korea, Saudi Arabia, Hong Kong, Kuwait, Italy, Singapore, and Spain. Additional LLWAS procurements are in progress.
Q. What are some of the windshear problems associated with airports?
A. Any airport that has thunderstorms, will be exposed to convective windshear. Any airport near mountains will experience terrain–induced windshear from time to time. Any airport near a coast, will experience windshear due to sea breezes. In the drier climates, even a light shower (or virga) can produce severe windshears, so in some places, the convection does not have to be as strong as a thunderstorm (e.g., Denver, Phoenix, Reno, Albuquerque, etc.).
Patents
Larry Cornman
Patent No. 5,315,297; Application No. 842009
Patent No. 5,351,045; Application No. 851466
Patent No. 5,208,587; Application No. 841979
Patent No. 5,257,021; Application No. 718345
Wesley Wilson, Jr.
Patent No. 5,221,924; Application No. 694455
Presentions
Training Information
FAA Aeronautical Information Manual
Accident Statistics

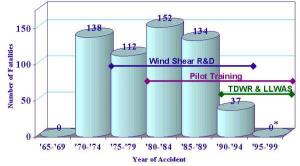

Fatalities Associated with U.S. Aviation Wind Shear Accidents
* Final accident report on AA accident at Little Rock, AR not completed. May be wind shear with 10 fatalities. No TDWR system at Little Rock. Source: NTSB/National Research Council.
Windshear Related Airlines Accidents
Source: FAA, NTSB Records, & Fujita
| YEAR | Flight Number/Location | Takeoff | Landing | Injuries | Deaths |
| 1956 | BOAC 252/773 Kano, Nigeria |
|
|
|
|
| 1974 | Pam Am 806 Pago Pago |
|
|
||
| 1975 | Cont 426 Denver, CO |
|
|
|
|
| 1975 | Eastern 66 JFK, New York |
|
|
|
|
| 1976 | Royal Jordan 600 Doha, Qatar |
|
|
|
|
| 1976 | Allegeny 121 Philadelphia, PA |
|
|
|
|
| 1977 | CONT 63 Tuscon, AZ |
|
|
|
|
| 1979 | Eastern 693 Atlanta, GA (near crash) |
|
|
|
|
| 1982 | Pan Am 759 New Orleans, LA |
|
|
||
| 1984 | US Air 183 Detroit, MI (aircraft damage) |
|
|
|
|
| 1985 | Delta 191 Dallas, TX |
|
|
||
| 1989 | IL 62 Santiago, Cuba |
|
|
||
| 1992 | Faro, Portugal |
|
|
||
| 1994 | US Air Charlotte, NC |
|
|
|
|
| 1999 | American Airline 1420 Little Rock, AK |
|
|
|
Images

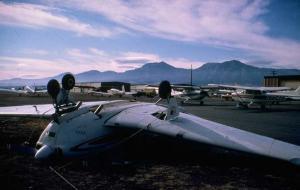

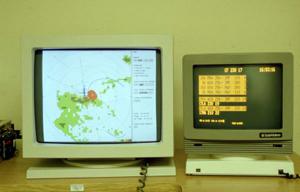

Images of microbursts, user displays, and windshear accidents.

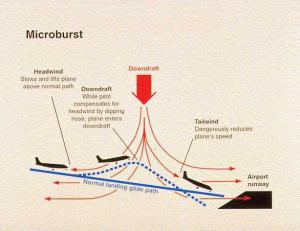

Airplane crash due to windshear
Microburst at Denver Stapleton Airport
Wet Microburst at Denver Stapleton Airport
